Dentist Office PA Package 1
Audio Acoustics The ProAudioSuperstore Dentist Office PA Package 1 is a Do-It-Yourself kit for a small dentist office when you would like to provide your own music source. This package focuses on sound quality over utility.
A Simple, Great Sounding PA For Your Office
Package 1 is focused more on sound quality with the premium JBL CONTROL 14C/T speakers. The CONTROL 14C/T is a wonderfully balanced full range speaker suitable for all types of music and paging applications. This is the package to choose for a great sounding music playback system. It also features the highly efficient and reliable JBL CSMA180 70V mixer/amp. These provide years of great sounding amplification an a variety of inputs to meet your needs.
We also skipped on the music playback source. This allows those who may already have a AM/FM tuner, CD player, or Satellite Radio receiver to use their own.

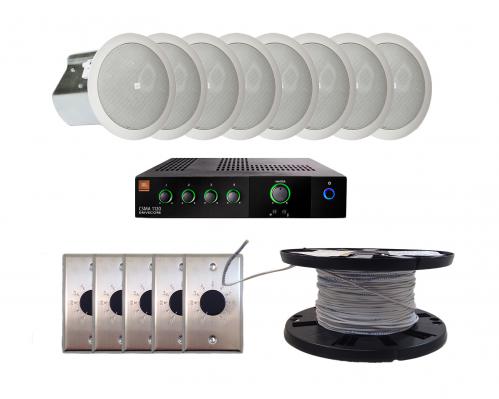

The ProAudioSuperstore Dentist Package #1 Includes:
1 x JBL CSMA180 mixer amplifer
8 x JBL CONTROL 14C/T Ceiling Speakers
500' roll of 18ga 2-cond speaker wire.
5 x AT35 wall-mounted volume controls
1 x Hosa CMR203 cable for connecting an iPod or portable music player
JBL CSMA180 4-Input Class-D 80W Mixer/Amplifier
The heart & brains of the whole system is the JBL CSMA180 70V mixer amplifier. The CSMA180 allows you to connect up to 4 different sources like CD players, satellite receivers, and MP3 players. Those inputs are mixed down to a single 70V speaker output with 80W of power. The CSMA180 even has a microphone input with voice priority so you can set it up as paging system that will duck out the music for any pages that come through. The CSMA180's highly efficient Class-D DriveCore amplifier makes these units environmentally friendly as they draw less power and due to their reduced size and weight, are cheaper to ship.
The CSMA mixer/amps offer unmatched ease of use, with a clean, front panel featuring only volume controls for each channel, master volume adjustment, adjustable bass and treble controls and a power switch. All the volume controls are surrounded by an illuminated ring, making them easy to see and operate in darkened environments. The amplifier can drive 8 ohm and 4 ohm loads and can be used with 70V and 100V distributed audio systems without the need for a separate transformer. In addition to balanced mic/line inputs, unbalanced RCA inputs and speaker connections, all units include RJ45 connectors for use with JBL CSR-V in-wall volume controls. All models feature a universal power supply which enables the ability to accept AC voltages from 100 to 240 VAC, 50/60Hz.
JBL Commercial mixer/amps are manufactured under HARMAN’s GreenEdge™ environmental initiative, conforming to lead-free RoHS standards and utilizing recycled copper, aluminum and steel, an energy-saving powder coat finishing process and other environmentally-conscious manufacturing processes. Their highly efficient DriveCore design reduces power consumption and yields much more efficient operation – up to 80 percent more efficient than previous designs. All models carry a 3-year no-fault transferable warranty.
JBL Control 14C/T In-Ceiling Speakers
Control 14C/T is a full-range ceiling speaker consisting of a 100 mm (4 inch) high tech cone driver and a 19 mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blind-mount backcan for quick and easy installation.
The JBL Control 14C/T is our most popular in-ceiling speaker. We sell literally thousands of these speakers every year because they sound fantastic, they are well built, and they include all of the required mounting hardware for both drywall and drop-tile ceilings.
The Control 14C/T is designed for use with 70V systems. It is a coaxial speaker with a 4" low frequency driver and a 0.75" soft-dome liquid-cooled tweeter. The speaker is completely housed and sealed in a metal can. It features a removable phenix terminal block for the speaker input and output. The grille is removable with a dial underneath for selecting the wattage tap for the speaker. It has taps at 3.2W, 6.3W, 12.5W, 25W, or an 8Ω Bypass as well. Also, you can rest easy knowing that these speakers are up to building code standards with it's UL2043 Plenum listing.
