<h5>Tascam DR-60DmkII 4-Input / 4-Track Multitrack Field Recorder</h5>

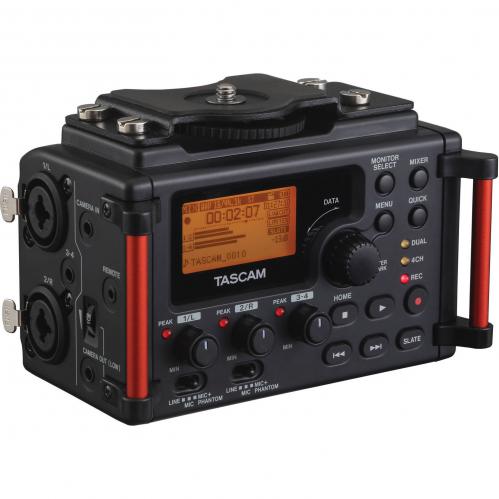

Tascam DR-60DmkII 4-Input / 4-Track Multitrack Field Recorder
Tascam $249.99 $199.00199.00
The Tascam DR-60DmkII multitrack field recorder is an ideal companion for your DSLR. Capture up to four tracks of high-resolution audio from external sources, route audio to and from your camera, and conveniently monitor through headphones.
SKU DR60DMKII
Quantity:
DR60DMKII
Tascam DR-60DmkII 4-Input / 4-Track Multitrack Field Recorder
Tascam
Authorized Dealer:Tascam DR-60DmkII 4-Input / 4-Track Multitrack Field Recorder Authorized Dealer:

The DR-60DmkII is the next generation of 4-track solid-state recording, based on TASCAM’s decades of recording innovation. The upgraded HDDA microphone preamps provide up to 64dB of gain, capturing every nuance of a performance. Up to four channels at a time can be recorded to the internal SD Card, at up to 96kHz/24-bit WAV file resolution. Two of the mic inputs utilize locking XLR connectors with 48V phantom power, the other two use an 1/8” stereo connector for wireless and lavaliere microphones.

A Camera Output sends the mic mix to the camera for later synchronization, and a Camera Input is provided for monitoring playback. An additional headphone out and line out assist the crew during filming. The DR-60DmkII is designed for low-noise operation, including soft touch buttons and dedicated gain controls.

Multiple recording modes are available on the DR-60DmkII. Four-Channel Mode records all four microphone inputs. Dual Recording is an alternate setting, capturing a copy of your audio at a lower level for a distortion-free safety track. Menus and operation are well laid out, owing to decades of innovative recording design.

Reach beyond the limited performance of your camera’s audio to capture the other half of your film. At a cost less than competing preamps, the TASCAM DR-60DmkII is the ultimate 4-track recorder designed for filmmakers, television, live events and web broadcast.

Portable Recorder

Number of Tracks
4
Max Sample Rate/Resolution
96 kHz / 24-Bit
Microphone
None
Built-In Speaker
No
Display
Monochrome LCD (Backlit)
Memory Card Support
SD (64 MB to 2 GB)
SDHC (4 GB to 32 GB)
Internal Storage
None

Recording

Audio File Formats
BWF, WAV
Sample Rates
WAV:
44.1 / 48 / 96 kHz
Bit Depth
16 / 24-Bit
Signal Processing
Auto Gain, EQ, Limiter, Low-Cut Filter
Timecode
No
Recording Time
WAV 44.1 kHz/16-Bit:
1 Hr 41 Mins per GB (Stereo)
WAV 48 kHz/16-Bit:
1 Hr 33 Mins per GB (Stereo)
WAV 96 kHz/16-Bit:
46 Mins per GB (Stereo)
WAV 44.1 kHz/24-Bit:
1 Hr 7 Mins per GB (Stereo)
WAV 48 kHz/24-Bit:
1 Hr 2 Mins per GB (Stereo)
WAV 96 kHz/24-Bit:
31 Mins per GB (Stereo)

Connectivity

Analog I/O
2 x Combo XLR-1/4" TRS Female Balanced Line/Mic Input (Lockable)
1 x 1/8" / 3.5 mm TRS Female Unbalanced Mic Input
1 x 1/8" / 3.5 mm TRS Female Unbalanced Camera Input
1 x 1/8" / 3.5 mm TRS Female Unbalanced Camera Output
1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Output
1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
1 x 2.5 mm TRS Female Remote Input
Digital I/O
None
Phantom Power
+24 / 48 V ± 4 V (Selectable on Individual Inputs)
Phantom Power Current
10 mA per Channel
Plug-In Power
Yes
Host Connection
1 x Mini-USB (USB 2.0)

Performance

Frequency Response
Line Outputs, Mic/Line Inputs:
20 Hz to 20 kHz +0.5/-2 dB (At 48 kHz, JEITA)
20 Hz to 40 kHz +0.5/-3 dB (At 96 kHz, JEITA)
Gain Range
Balanced Inputs:
+11 dB to +64 dB
Unbalanced Inputs:
+3 dB to +38 dB
Max Input Level
Mic Inputs:
0 dBu
Line Inputs:
+24 dBu
1/8" Inputs:
+10 dBV
Camera Inputs:
+6 dBV
Max Output Level
Camera Outputs:
-30 dBV
Line Outputs:
+10 dBV
Headphone Output Power
50 mW per Channel
Impedance
Mic Inputs:
2 kOhms
Line Inputs:
≥10 kOhms
1/8" / 3.5 mm Inputs:
10 kOhms
Camera Outputs:
200 Ohms
Line Outputs:
200 Ohms
SNR
≥92 dB
THD
≤0.02%
EIN
-120 dBu

Power

Power Options
Batteries, USB Bus Power, AC/DC Power Adapter
Battery Type
4 x AA (Not Included)
Approximate Battery Life
WAV 44.1 kHz/16-Bit:
2.5 Hours (AA Alkaline, 2 Channels, Phantom On, Recording)
4.5 Hours (AA Alkaline, 2 Channels, Phantom Off, Recording)
3.25 Hours (AA NiMH, 2 Channels, Phantom On, Recording)
5 Hours (AA NiMH, 2 Channels, Phantom Off, Recording)
AC/DC Power Adapter
5 VDC (Not Included)

Physical

Mounting Options
1/4"-20 Female
Operating Temperature
32 to 140°F / 0 to 40°C
Dimensions
5.2 x 3.7 x 3.1" / 133 x 93.2 x 78 mm
Weight
1.1 lb / 510 g (Without Batteries)
