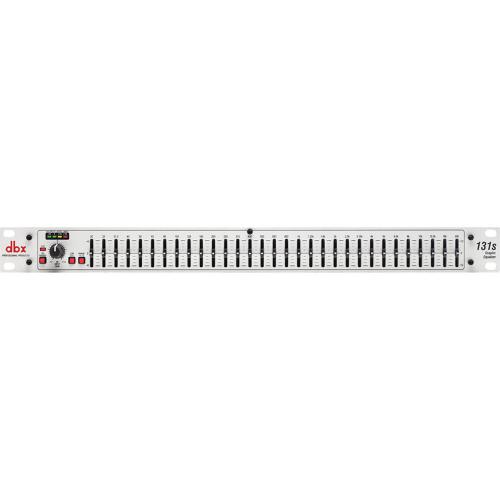

Get the simplicity of straightforward controls in a package designed to meet the needs of even the most demanding sound-reinforcement situatiosn with the dbx 131s. This equalizer features single-channel, 31 1/3 octave bands, ISO frequency centers, ± 12dB input gain range, and switchable 50Hz/12dB per octave low-cut filter. You'll also find 20 mm faders, selectable ± 6dB or ±12dB boost/cut range for precise gain adjustments, XLR barrier strip, and 1/4" TRS connectors for installation ease.

The 12 Series Equalizers were engineered with precision to offer years of maintenance-free operation.

Features

• Single 31-band, 1/3-octave Constant Q frequency bands
• Switchable boost/cut ranges of ±6 or ±12 dB
• 12dB per octave, 3dB down @ 50Hz low-cut filter
• Front panel bypass switch
• ±12 dB input gain range
• 4-segment LED ladders for monitoring output levels
• XLR and TRS Inputs and Outputs
• Internal Toroidal Transformer
• Frequency Repsonse of <10Hz to >50kHz
• Dynamic range of greater than 108dB
